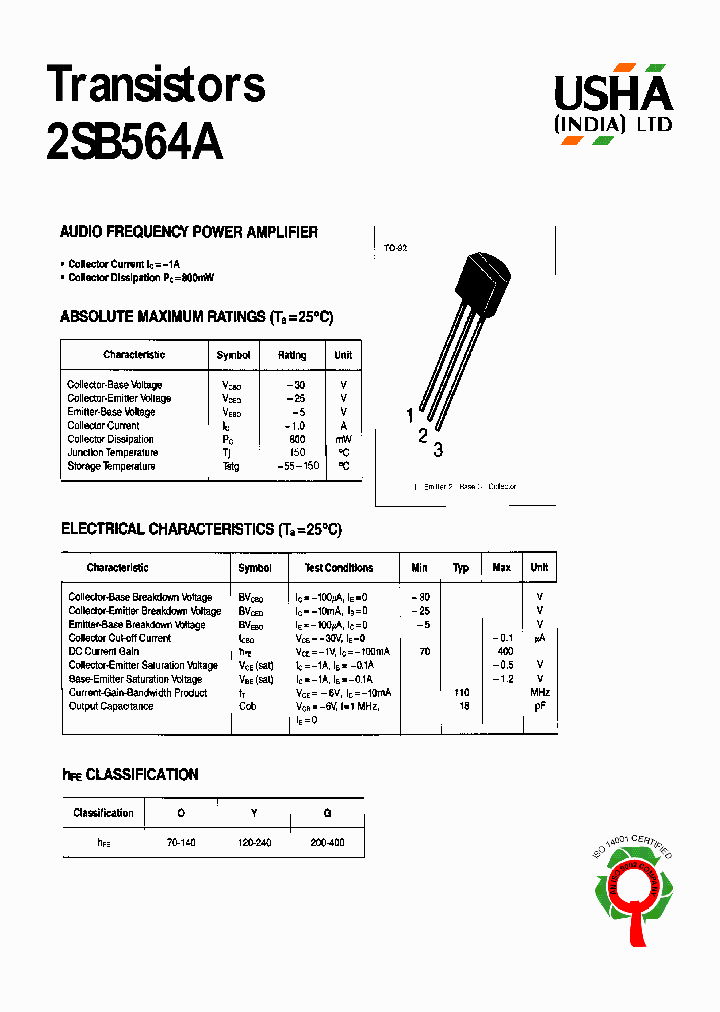

2SB564A - Audio frequency power amplifier. Collector-base voltage Vcbo = -30V. Collector-emitter voltage Vceo = -25V. Emitter-base voltage Vebo = -5V. Collector dissipation Pc(max) = 800mW. Collector current Ic = -1.0A.

2SB564A_8289271.PDF Datasheet

Part No.

2SB564A

Description

Audio frequency power amplifier. Collector-base voltage Vcbo = -30V. Collector-emitter voltage Vceo = -25V. Emitter-base voltage Vebo = -5V. Collector dissipation Pc(max) = 800mW. Collector current Ic = -1.0A.

File Size

88.96K / 2 Page

Maker

USHA India LTD
