| PART |
Description |
Maker |

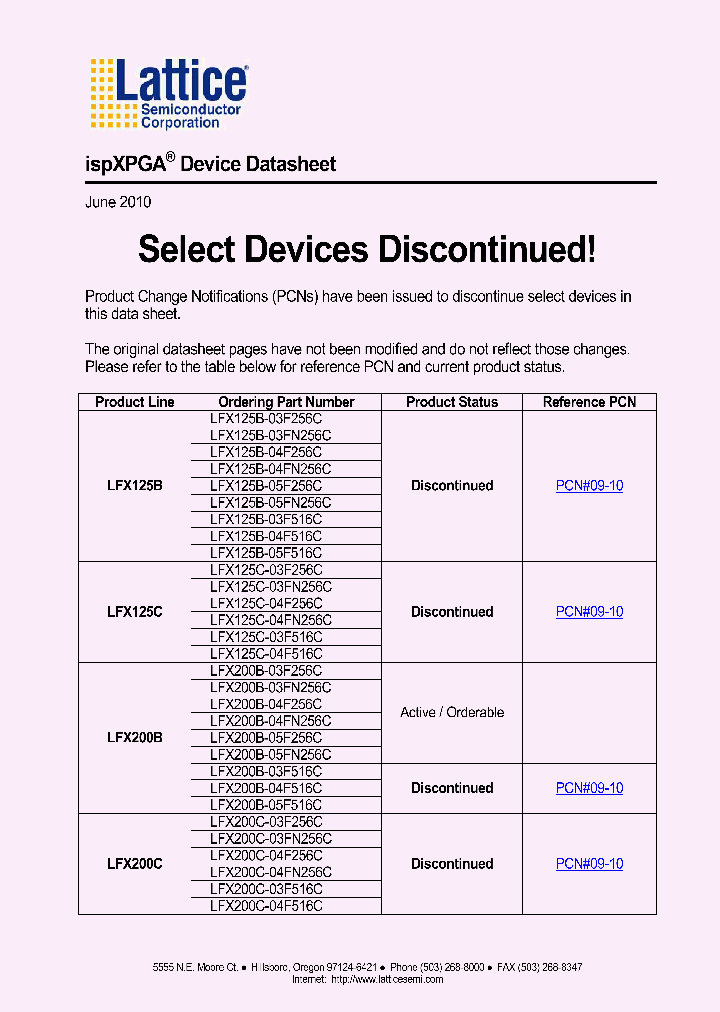

| LFX200B-03F516C LFX500B-03F516C LFX200B-03FN516C L |
FPGA, 3844 CLBS, 1250000 GATES, PBGA900 FPBGA-900
FPGA, 3844 CLBS, 1250000 GATES, PBGA680 FPSBGA-680
FPGA, 676 CLBS, 210000 GATES, PBGA256 FPBGA-256
FPGA, 676 CLBS, 210000 GATES, PBGA256 LEAD FREE, FPBGA-256
FPGA, 1764 CLBS, 476000 GATES, PBGA900 FPBGA-900
FPGA, 1764 CLBS, 476000 GATES, PBGA516 FPBGA-516
FPGA, 484 CLBS, 139000 GATES, PBGA256 LEAD FREE, FPBGA-256
FPGA, 484 CLBS, 139000 GATES, PBGA256 FPBGA-256
FPGA, 676 CLBS, 210000 GATES, PBGA516 FPBGA-516
|
Lattice Semiconductor Corporation
Lattice Semiconductor, Corp.
|
| QL4016-2CF100C QL4009-2PF100C QUICKLOGICCORP-QL409 |
FPGA, 320 CLBS, 61280 GATES, CQFP100
FPGA, 160 CLBS, 44964 GATES, PQFP100
FPGA, 1584 CLBS, 176608 GATES, PQFP240
FPGA, 320 CLBS, 61280 GATES, PQFP144
FPGA, 320 CLBS, 61280 GATES, PQFP100
FPGA, 320 CLBS, 61280 GATES, PQCC84
FPGA, 1008 CLBS, 131328 GATES, PQFP208
FPGA, 1008 CLBS, 131328 GATES, PBGA456
|
QUICKLOGIC CORP
|
| DS312 XC3S100E-4CP132C XC3S100E-4CP132I XC3S100E-5 |
Spartan-3E FPGA Family: Introduction and Ordering Information
XC3S100E-4CP132C FPGA, 240 CLBS, 100000 GATES, 572 MHz, PBGA132
XC3S100E-4CP132I FPGA, 240 CLBS, 100000 GATES, 572 MHz, PBGA132
XC3S100E-5CP132C FPGA, 240 CLBS, 100000 GATES, 657 MHz, PBGA132
XC3S250E-5FT256C FPGA, 612 CLBS, 250000 GATES, 657 MHz, PBGA256
XC3S100E-4VQG100C FPGA, 240 CLBS, 100000 GATES, 572 MHz, PQFP100
XC3S250E-4FTG256I FPGA, 612 CLBS, 250000 GATES, 572 MHz, PBGA256
XC3S250E-4PQG208C FPGA, 612 CLBS, 250000 GATES, 572 MHz, PQFP208
XC3S250E-4PQ208I FPGA, 612 CLBS, 250000 GATES, 572 MHz, PQFP208
XC3S250E-4PQ208C FPGA, 612 CLBS, 250000 GATES, 572 MHz, PQFP208
XC3S100E-5VQ100C FPGA, 240 CLBS, 100000 GATES, 657 MHz, PQFP100
XC3S100E-5TQ144C FPGA, 240 CLBS, 100000 GATES, 657 MHz, PQFP144
XC3S100E-4CPG132I FPGA, 240 CLBS, 100000 GATES, 572 MHz, PBGA132
XC3S1600E-4FGG320C FPGA, 3688 CLBS, 1600000 GATES, 572 MHz, PBGA320
XC3S250E-5FTG256C FPGA, 612 CLBS, 250000 GATES, 657 MHz, PBGA256
XC3S500E-4CPG132I FPGA, 1164 CLBS, 500000 GATES, 572 MHz, PBGA132
XC3S250E-4VQG100C
Absolute Maximum Ratings
|
Xilinx, Inc.
XILINX INC
|
| A42MX09-PL100 A42MX09-PL100ES A42MX09-PL100I A42MX |
FPGA, 336 CLBS, 14000 GATES, PQCC84
FPGA, 608 CLBS, 24000 GATES, 117 MHz, PQFP100
FPGA, 608 CLBS, 24000 GATES, 56.16 MHz, PQFP100
FPGA, 608 CLBS, 24000 GATES, PQFP100
FPGA, 336 CLBS, 14000 GATES, PQFP100
FPGA, 912 CLBS, 36000 GATES, PQCC84
FPGA, 912 CLBS, 36000 GATES, 114.75 MHz, PQCC84
FPGA, 1184 CLBS, 54000 GATES, PBGA272
FPGA, 547 CLBS, 6000 GATES, 108.54 MHz, PQCC84
FPGA, 608 CLBS, 24000 GATES, 56.16 MHz, PQFP176
FPGA, 608 CLBS, 24000 GATES, PQFP176
FPGA, 912 CLBS, 36000 GATES, 84 MHz, PQFP176 1.40 MM HEIGHT, PLASTIC, TQFP-176
FPGA, 608 CLBS, 24000 GATES, 93.6 MHz, PQFP176 1.40 MM HEIGHT, PLASTIC, TQFP-176
FPGA, 336 CLBS, 14000 GATES, 117 MHz, PQFP176 1.40 MM HEIGHT, PLASTIC, TQFP-176
40MX and 42MX FPGA Families
FPGA, 547 CLBS, 6000 GATES, PQFP100
|
Actel, Corp.
Actel Corporation
|
| XC4010-10PG191M XC4003A-6PQ100C |
FPGA, 400 CLBS, 8000 GATES, CPGA191 CERAMIC, PGA-191
FPGA, 100 CLBS, 2500 GATES, PQFP100
|
Xilinx, Inc.
XILINX INC
|
| AGL125V2-CSG196I AGL015V2-QN68I |
FPGA, 3072 CLBS, 125000 GATES, 108 MHz, PBGA196
FPGA, 384 CLBS, 15000 GATES, QCC68
|
|
| XC3190-4PQ160I XC3190-4PQ208I XC3142-3TQ144C XC314 |
FPGA, 320 CLBS, 5000 GATES, 230 MHz, PQFP160
FPGA, 320 CLBS, 5000 GATES, 230 MHz, PQFP208
FPGA, 144 CLBS, 3000 GATES, 270 MHz, PQFP144
FPGA, 144 CLBS, 3000 GATES, 230 MHz, PQFP100
|
XILINX INC
|
| OR3C804BA352I-DB OR3T206S208-DB |
FPGA, 484 CLBS, 116000 GATES, PBGA352 PLASTIC, BGA-352
FPGA, 144 CLBS, 36000 GATES, PQFP208 PLASTIC, SQFP-208
|
Lattice Semiconductor, Corp.
|
| A3P060-1FG144C A3P125-1VQ100I A3P125-VQG100I A3P12 |
FPGA, 1536 CLBS, 60000 GATES, 350 MHz, PBGA144 1 MM PITCH, FBGA-144
FPGA, 3072 CLBS, 125000 GATES, 350 MHz, PQFP100 14 X 14 MM, 1 MM HEIGHT, 0.50 MM PITCH, VQFP-100
|
Cooper Bussmann, Inc.
|
| QL1P075-6PSN256I QL1P075-8PSN256I QL1P075-7PSN256I |
FPGA, 512 CLBS, 75000 GATES, 200 MHz, PBGA256 17 X 17 MM, 1 MM PITCH, LEAD FREE, LBGA-256
FPGA, 512 CLBS, 75000 GATES, 200 MHz, PBGA256 17 X 17 MM, 1 MM PITCH, LBGA-256
FPGA, 640 CLBS, 100000 GATES, 200 MHz, PBGA256 17 X 17 MM, 1 MM PITCH, LEAD FREE, LBGA-256
FPGA, 640 CLBS, 100000 GATES, 200 MHz, QFP144 20 X 20 MM, 0.5 MM PITCH, LEAD FREE, TQFP-144
FPGA, 640 CLBS, 100000 GATES, 200 MHz, QFP144 20 X 20 MM, 0.5 MM PITCH, TQFP-144
FPGA, 1536 CLBS, 200000 GATES, 200 MHz, PBGA256 17 X 17 MM, 1 MM PITCH, LBGA-256
FPGA, 1920 CLBS, 300000 GATES, 200 MHz, PBGA256
|
QuickLogic, Corp.
QUICKLOGIC CORP
|
| XC4013E-1BG225C XC4010E-2BG225C XC4005E-4PQ100I XC |
13000 GATE LOGIC CELL ARRAY - NOT RECOMMENDED for NEW DESIGN FPGA, 576 CLBS, 10000 GATES, 166 MHz, PBGA225
10000 GATE LOGIC CELL ARRAY - NOT RECOMMENDED for NEW DESIGN FPGA, 400 CLBS, 7000 GATES, 125 MHz, PBGA225
5000 GATE LOGIC CELL ARRAY - NOT RECOMMENDED for NEW DESIGN
FPGA, 100 CLBS, 2000 GATES, 125 MHz, PQFP100
FPGA, 400 CLBS, 7000 GATES, 125 MHz, PQFP208
|
Xilinx, Inc.
XILINX INC
|
|
