| PART |
Description |
Maker |
| 2021-25 |
25 W, 24 V, 2000-2130 MHz common base transistor
25 Watts, 24 Volts, Class C Microwave 2000 - 2130 MHz
BJT
2000-2400 MHz, Class C, Common Base; fO (MHz): 2100; P(out) (W): 25; P(in) (W): 5; Gain (dB): 7.5; Vcc (V): 24; Case Style: 55AW-1 S BAND, Si, NPN, RF POWER TRANSISTOR
|
GHz Technology
Microsemi, Corp.
|
| 2301 |
2.3 GHz Class C, Common Base; fO (MHz): 0; P(out) (W): 1.5; P(in) (W): 0.24; Gain (dB): 8.5; Vcc (V): 20; Cob (pF): 4; Case Style: 55BT-1 S BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR
1.5 Watt - 20 Volts, Class C Microwave 2300 MHz
|
MICROSEMI POWER PRODUCTS GROUP
Microsemi, Corp.
GHZTECH[GHz Technology]
GHz Technology, Inc.
|
| MRF517 |
Small Signal, Up to 1 GHz, Class A, Common Emitter; fO (MHz): 0; fT (MHz): 3000; GNF (dB): 10; VCE (V): 15; IC (mA): 60; NF min (dB): 2.5; Case Style: TO-39 UHF BAND, Si, NPN, RF POWER TRANSISTOR, TO-39
|
Microsemi, Corp.
|

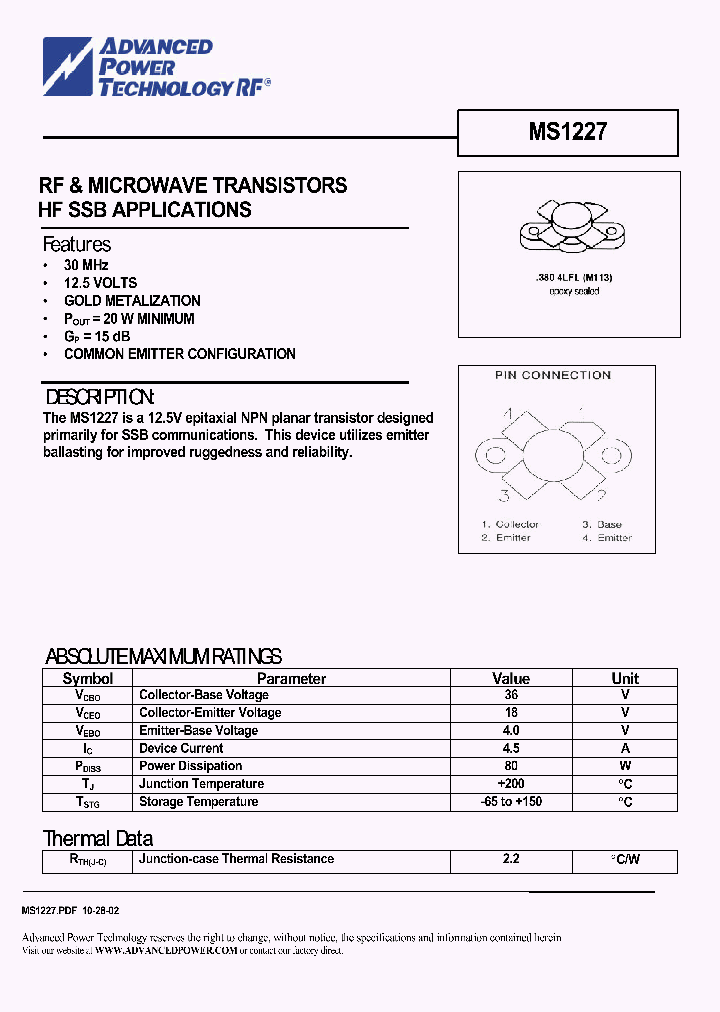

| MS1227 |
HF 2-50 MHz, Class C, Common Emitter; P(out) (W): 20; P(in) (W): 0.65; Gain (dB): 15; Vcc (V): 12.5; Cob (pF): 100; fO (MHz): 0; Case Style: M113 HF BAND, Si, NPN, RF POWER TRANSISTOR
RF & MICROWAVE TRANSISTORS HF SSB APPLICATIONS
|
Microsemi, Corp.
ADPOW
|
| MS1007 |
RF & MICROWAVE TRANSISTORS HF SSB APPLICATIONS
HF 2-30 MHz, Class AB, Common Emitter; fO (MHz): 0; P(out) (W): 150; P(in) (W): 6; Gain (dB): 14; Vcc (V): 50; ICQ (A): 100; Case Style: M174 HF BAND, Si, NPN, RF POWER TRANSISTOR
|
Advanced Power Technolo...
ADPOW[Advanced Power Technology]
Microsemi, Corp.
|
| 23A017 |
1.7 W, 20 V, 2300 MHz common emitter transistor
1.7 Watts, 20 Volts, Class A Linear to 2300 MHz
|
GHZTECH[GHz Technology]
|
| MDS150 |
150 Watts, 50 Volts, Pulsed Avionics 1030 - 1090 MHz
MODE-S, 1030/1090 MHz, Class C, Common Base, Pulsed ; P(out) (W): 150; P(in) (W): 20; Gain (dB): 10; Vcc (V): 50; Pulse Width (µsec): 128; Duty Cycle (%): 2; Case Style: 55AW-1 L BAND, Si, NPN, RF POWER TRANSISTOR
|
Microsemi Corporation
Microsemi, Corp.
|
| SD1536-03 |
Air DME 1025-1150 MHz, Class C, Common Base, Pulsed; P(out) (W): 90; P(in) (W): 13; Gain (dB): 8.4; Vcc (V): 50; Pulse Width (µsec): 10; Duty Cycle (%): 1; Case Style: M115 L BAND, Si, NPN, RF POWER TRANSISTOR
|
Microsemi, Corp.
|
| MS2472 |
Air DME 1025-1150 MHz, Class C, Common Base, Pulsed; P(out) (W): 550; P(in) (W): 150; Gain (dB): 5.6; Vcc (V): 50; Pulse Width (µsec): 10; Duty Cycle (%): 1; Case Style: M112 L BAND, Si, NPN, RF POWER TRANSISTOR
RF & MICROWAVE TRANSISTORS AVIONICS APPLICATIONS
|
Microsemi, Corp.
Advanced Power Technology
|
| 1617AB15 |
15 Watts PEP, 26 Volts, Class AB Linear 1600 - 1700 MHz
15 Watts PEP 26 Volts Class AB Linear 1600 - 1700 MHz
15 Watts PEP/ 26 Volts/ Class AB Linear 1600 - 1700 MHz
TELCO 25-PAIR PVC 25 FT 1 MALE CNNCTR/1 OPEN
|
List of Unclassifed Manufacturers
GHz Technology
ETC[ETC]
Electronic Theatre Controls, Inc.
|
| QPP-003 |
QuikPAC module data. 60W, 869-894 MHz, Class AB power stage.
60W, 869-894 MHz Class AB Power Stage
|
XEMOD
List of Unclassifed Manufacturers
ETC[ETC]
Electronic Theatre Controls, Inc.
|
| A82015C0GL5 A82120C0GL5 A68015C0GL5 A56015C0GL5 A5 |
Axial Leaded Multilayer Ceramic Capacitors for General Purpose Class 1, Class 2 and Class 3, 50 VDC, 100 VDC, 200 VDC, 500 VDC
|
Vishay Siliconix
|
|
